Install smokeping using docker
About smokeping
smokeping is an awesome tool to measure latency and packet loss.
Installation steps
SSH to your Linux docker host.
I use KiTTY to ssh to my Linux docker host.
Create a directory smokeping
Move to directory smokeping
Create docker compose file and open it with nano
Configure the docker compose file
Paste the following yaml code into nano:
services:
smokeping:
image: lscr.io/linuxserver/smokeping:latest
container_name: smokeping
# hostname: smokeping #optional
environment:
- PUID=1000
- PGID=1000
- TZ=Etc/UTC
# - MASTER_URL=http://<master-host-ip>:80/smokeping/ #optional
# - SHARED_SECRET=password #optional
# - CACHE_DIR=/tmp #optional
volumes:
- ./config:/config
- ./data:/data
ports:
- 8080:80
restart: unless-stopped
I want to access smokeping on port 8080, so I put in the following ports configuration:
The port definition on the left side is your local host.
The port definition on the right side is the port inside the docker container.
Save the file in nano with CTRL+O
Hit Enter
Exit nano with CTRL+X
Build, create and start with docker compose
The -d option makes the container run in the background.

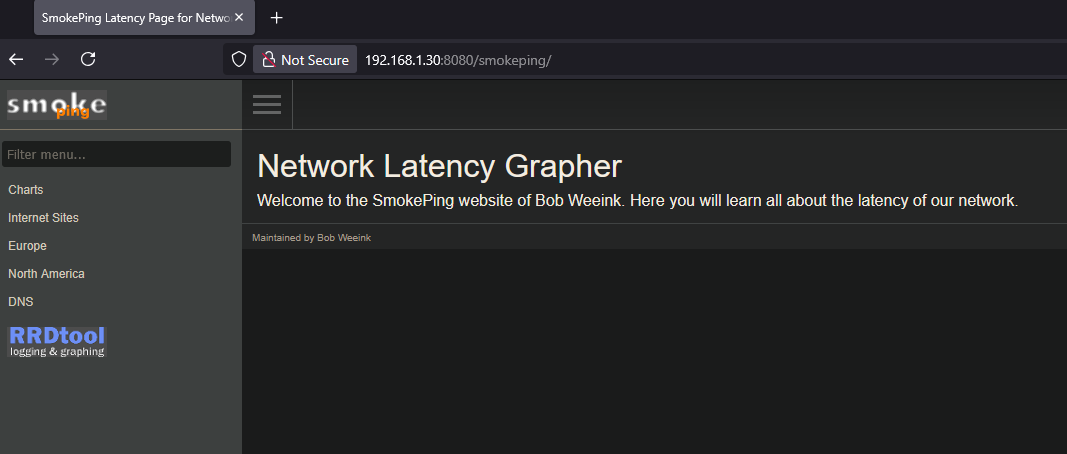

Smokeping homepage
Go to the IP address of the Linux docker host with port number 8080.
My host has IP 192.168.1.30 so that translates to http://192.168.1.30:8080
Change ping interval
By default, smokeping sends 20 pings every 300 seconds.
This interval can be changed in the database file.
From the smokeping directory let's do a dir to see the files and directories:
The following directories and files appears:
Move to the config directory:
Let's do a dir to see the files and directories:
The following directories and files appears:
Alerts Database General httpd.conf pathnames Presentation Probes site-confs Slaves smokeping_secrets ssmtp.conf Targets

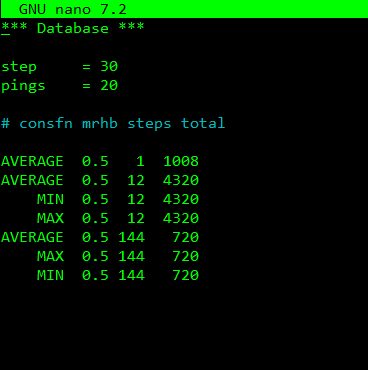

Open the database file with nano:
Change the step = value to the value you like, I have mine set to 30.
Change the pings = value to the value you like, I have mine set to 20.
These values tell smokeping to send 20 pings every 30 seconds.
Save the file in nano with CTRL+O
Hit Enter
Exit nano with CTRL+X
smokeping database documentation specifies the following regarding changing these values:
Note that the step in the RRD files is fixed when they are originally generated, and if you change the step parameter afterwards, you'll have to delete the old RRD files or somehow convert them. Note that the number of pings in the RRD files is fixed when they are originally generated, and if you change this parameter afterwards, you'll have to delete the old RRD files or somehow convert them.
I choose the option to delete all data, since this is a brand-new installation of smokeping.
Change from current directory smokeping/config to the smokeping directory:
From the smokeping directory, shutdown the smokeping docker container with docker compose:
Let's check all files and directories:
The following directories and files appears:
Delete the data directory with everything in it:
Let's check all files and directories:
The data directory is gone:
Start the smokeping docker container with docker compose:
When the smokeping docker starts it automatically creates the data directory.
Let's check all files and directories:
The data directory is back:
Go to the smokeping website of your Linux docker host and after a minute there should be data displayed in the graphs.
